MFJ-860 (MFJ 860 MFJ860)

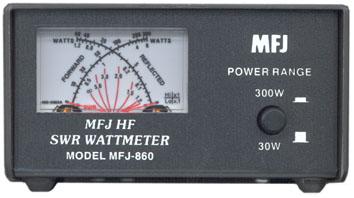

MFJ-860
PDF User Manual for MFJ-860 (MFJ 860 MFJ860) :

MFJ-860 (MFJ 860 MFJ860) technical specifications :



The MFJ-860 cross-needle meter reads forward and reflected power and SWR simultaneously at a single glance. This meter may be used for 1.8 to 60 MHz up to 300 watts. The two power ranges are selected by a push button: 30/300 watts forward (and 6/60 watts reflected). The rear panel has SO-239 jacks for input and output. Meter uses 12 VDC or 110 VAC with MFJ-1312D optional adapter.

Only 4.5x2.25x3 inches. Black metal case.
