Icom IC-718 (IC 718 IC718)

Icom IC-718 (IC 718 IC718) TX 1.8 - 30 MHz

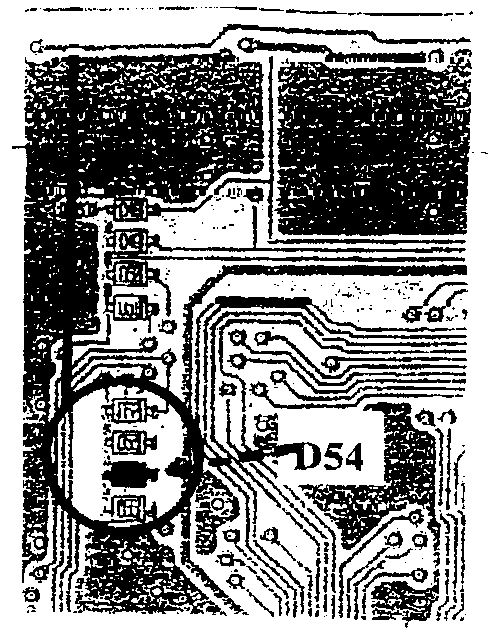

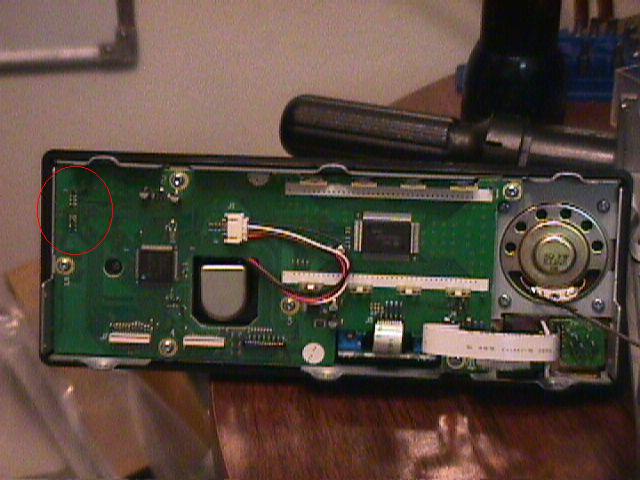

Remove D-54 on the logic board, located behind the front panel.

D-54 is located in the upper left corner in the lower vertical group of diodes.

X
X
X
X

X
X
0-D54
X
